TriDrone-RCV Portable, Remote Control Survey Boat
Seafloor SystemsPlease Call for a Quote and to Setup a Free Demo at (724) 266-1600 or PLI@Laserinst.com
(No reviews yet)
Write a Review
Seafloor Systems

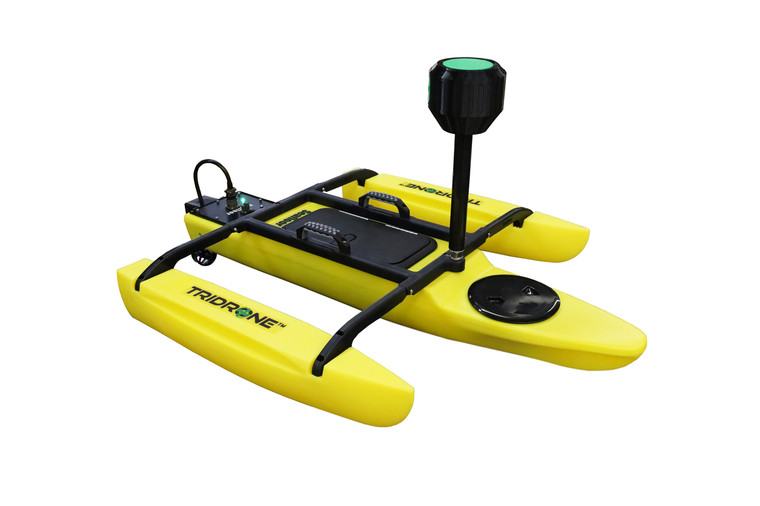

TriDrone-RCV Portable, Remote Control Survey Boat
Seafloor Systems TriDrone-RCV Portable, Remote Control Survey Boat | Datasheet
The TriDrone™ USV is a super-compact, portable platform for conducting hydrographic surveys in confined & remote bodies of water. With remotely controlled capabilities, a durable assembly, and a hull-integrated single beam echosounder, this USV brings automation and efficiency to any work site. The USV gains stability from its triple pontoon design and folds into thirds for one-person transport. Its maneuverable servo thruster steers the USV into previously unreachable zones with heightened precision and repeatability. Safely conduct hydrographic surveys from the shore and increase productivity in the field with the TriDrone™.
Applications:
Inspection / survey of steeply-banked rivers & lakes, mines, sewage treatment plants, contaminated waters.
Specifications
Survey Speed: 3 kn
Top Speed: 6 kn (Payload Dependent)
Length: 121.92 cm / 48 in
Folded Width: 32.5 cm / 12.8 in
Unfolded Width: 86.36 cm / 34 in
Hull Material: UV Resistant HDPE
Frame: 15% Glass Filled Nylon
Hardware: Stainless Steel
Weight: 10 kg / 22 lbs
Payload: 11 kg / 25 lbs
Power: 1 x 14.8 VDC 16 Ah Battery LiPo
Battery Endurance: 8 Hours at Survey Speed
Electronic Control Unit: 2 x 120 amp
Motor: 1 x Brushless Thruster with Weed Guard
Steering: Articulated Servo Steering
Remote Control:Horizon™ Spektrum Remote Control
Remote Control Range: Up to 1 km
Front Hatch: 1 x 7" Twist-Out Watertight Closure
GPS: Compatible with All Brands
Echosounder Package: Single Beam Sonar Systems
