Level Best


Level Best Laser Grading Box

Fine Grading Made Easy for Tractors and Skid Steers

Level Best Features

  • Durable Steel: Constructed of 3/8” and 1/4” steel plate and heavy-wall steel tubing, the Level Best grading system is built to take daily abuse on a job site.
  • Rugged Casters with Wheel Hub and Tapered Roller Bearing Assemblies: Large, heavy-duty casters with standard years of punishment. Heavy-duty wheel hub and bearing assemblies need only annual greasing, reducing maintenance time and costs.
  • Composite Bushings: Epoxy-Fiberglass composite bushings in all pivot points. This eliminates the need for greasing. The inexpensive, replaceable bushings wear instead of your grading box.
  • Foam-Filled Tires: This all but eliminates down time due to the repair of a tire.
  • Durable Cutting Edges: Made of long wearing high-carbon steel, the main and side cutting edges can be reversed for twice the life, and replaced in a matter of minutes.
  • Power Coating: Tough, long-lasting powder coating ensures that a Level Best grading box will look great for years to come.




Level-Best Grader Box Models (Call 724.266.1600 or Email Us at PLI@laserinst.com For More Info or Quotes!)

Para Level Skid Steer

PD Series Para-Level Skid Steer

Standard Features:

  • Universal skid steer mount
  • One cylinder controls height
  • Push-Pull design pushes and pulls material for fine grading
  • Stable platform for fine grading
  • Oscillating front axle stabilizes operation
  • Two cylinders provides cross-slope operation
  • 3D Capable
  • Foam-lilied tires
  • Powder Coated Finish
  • Reversible Cutting Edge on all sides
  • Convex Mirror allows material visibility
  • Hoses w/flat-face couplers
  • 1-1/2" Dia. Mast Pole Qty. of 2


Hydraulic Valve: Now included w/attachment

  • Proportional Valve
  • Hoses & Fittings

Requirements:

  • Auxiliary hydraulics on skid steer
Single Tractor

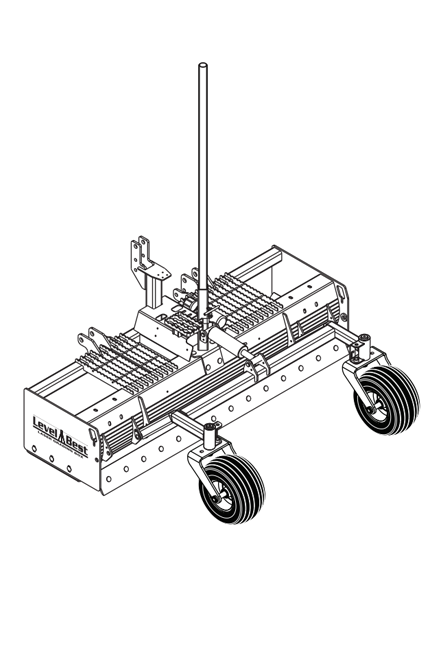

TS Series Single Tractor

Standard Features:

  • Fine grading at a budget price
  • Three-point hitch mount
  • Two cylinders control height
  • Perfect for complex slope
  • Manual control
  • Foam-filled Tires
  • Powder Coated Finish
  • Reversible Cutting Edge on all sides
  • Category I & JI hitch
  • 1-1/2" Dia. Mast Pole Qty. 2
  • Rear cutting edge standard
  • Drawbar Option Available

Requirements:

  • Tractor-mounted power-beyond, or auxiliary hydraulic remote valve
Dual Tractor

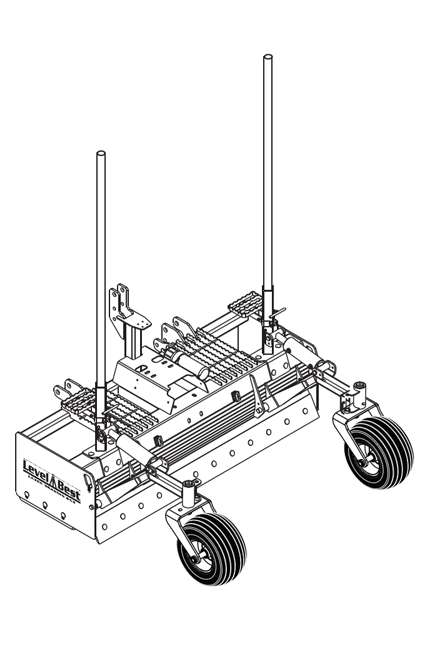

TD Series Dual Tractor

Standard Features:

  • Fine grading at a budget price
  • Three-point hitch mount
  • One cylinder controls height
  • Manual control
  • 1-1/2" Dia. Mast Pole
  • Foam-filled Tires
  • Powder Coated Finish
  • Reversible Cutting Edge on all sides
  • Category J & JI hitch
  • Rear cutting edge standard
  • Drawbar Option Available

Requirements:

  • Tractor-mounted power-beyond, or auxiliary hydraulic remote valve
